OAK-T (OAK Thermal): Advanced camera with thermal and color sensors for applications in agriculture, industry, security, and transportation. Combines AI models with thermal and color data for precise detection and monitoring across various fields.

OverviewDiscussionsLogin to Comment

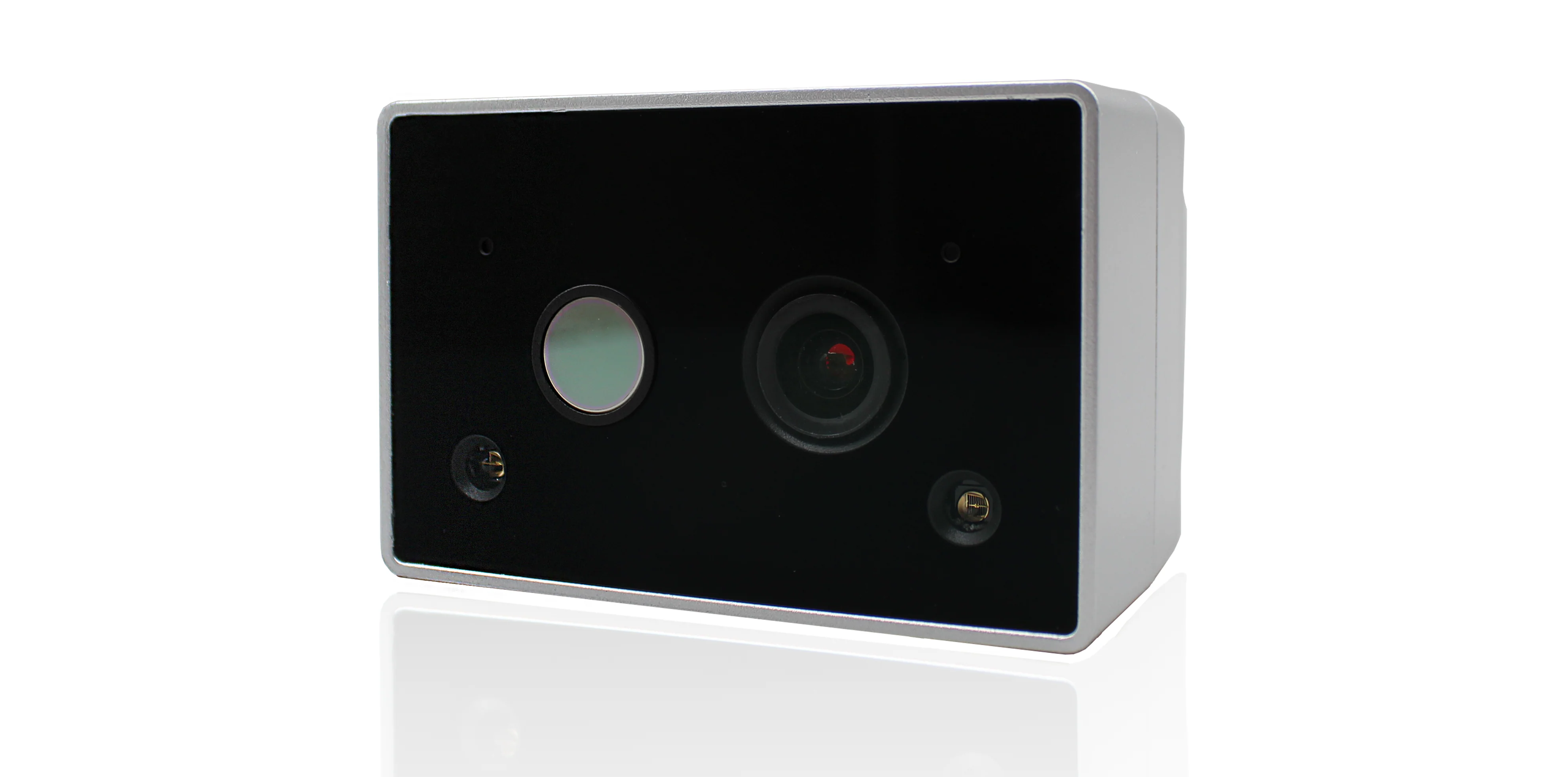

The OAK-T (OAK Thermal)

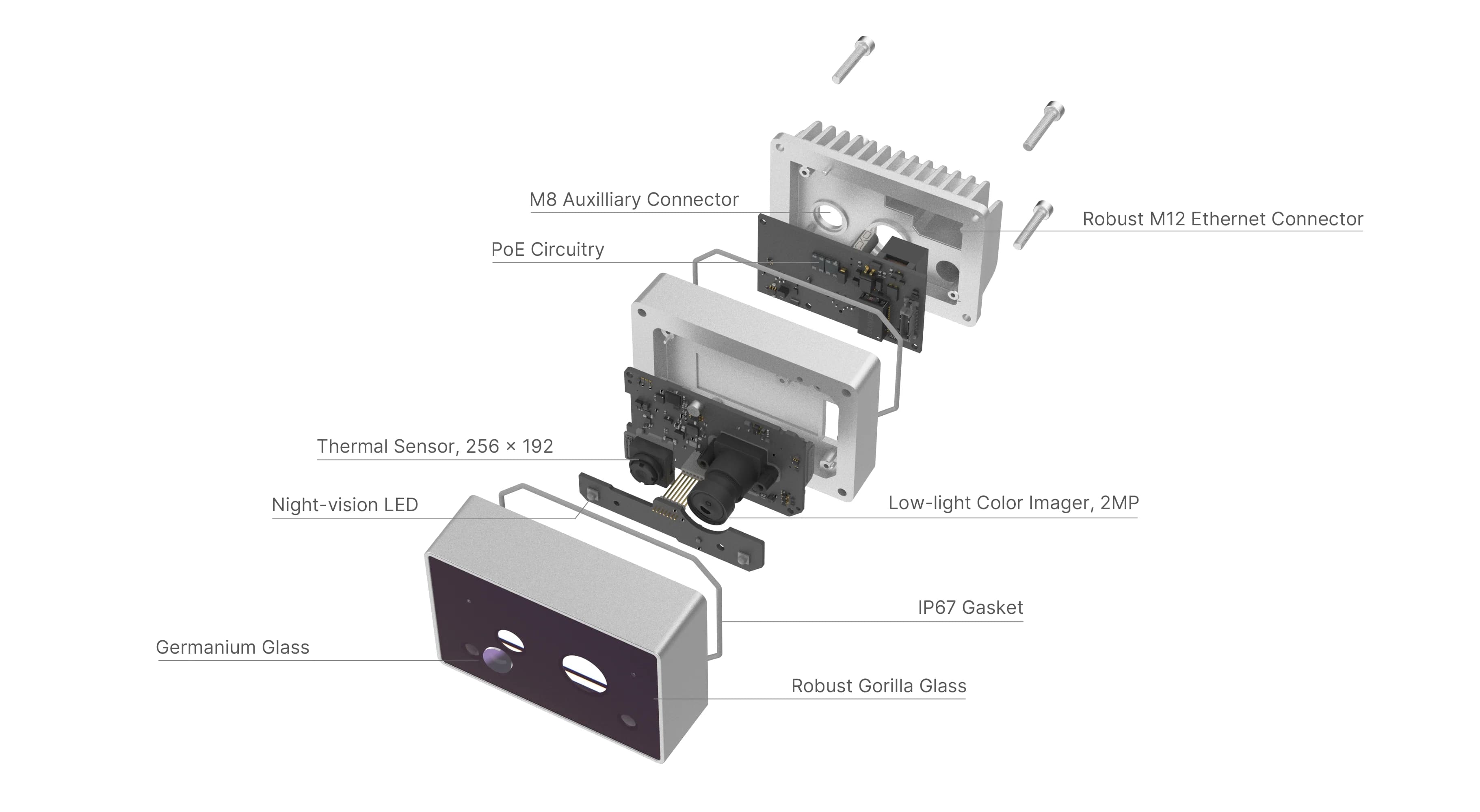

OAK-T leverages our OAK-SoM-Pro to make an overall compact design. The use of the SoM reduces the design's scale, making it easier to mount or fit anywhere seamlessly. The design will also be open-source when we verify the hardware design.


The purpose of the device is to be used for manufacturing, warehouse, energy efficiency, and safety monitoring.

PoE connection allows cameras to communicate to other computers via networking protocols (TCP, UDP, HTTP, MQTT, etc.).

The OAK-T (OAK Thermal)

Where OAK Thermal can help

When fusing thermal frames, color frames, and AI models, you can create a wide variety of applications in different fields, such as:


  • Agriculture: Health crop, detect irrigation issues, detect pests, livestock health monitoring, etc.
  • Industrial: Detect overheating, detect leaks, detect fires, etc.
  • Security: Detect intruders (night vision), detect fires, etc.
  • Transportation: Detect pedestrians, vehicles, bicycles for analytics and traffic optimization.

RVC2 architecture on-board features:


  • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
  • Run any AI model, even custom architectured/built ones (models need to be converted)
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • Object tracking: 2D tracking with ObjectTracker node

  • Connectivity: M12 PoE connector and M8 connector for IO connectivity
  • Thermal sensitivity: 50mK @ 25°C and 25Hz
  • Measurement range: -15°C - 150°C
  • Thermal sensor resolution: 256x192
  • Thermal Accuracy: ±2°C or ±2% (whichever is larger)
  • Sensor type: Uncooled VOx detector
  • Spectral range: 8-14µm




  • Power consumption: up to 6.5W
  • Industrial grade aluminum housing with Front Gorilla Glass
  • 1/4" tripod mount and 75mm M4 Vesa mount

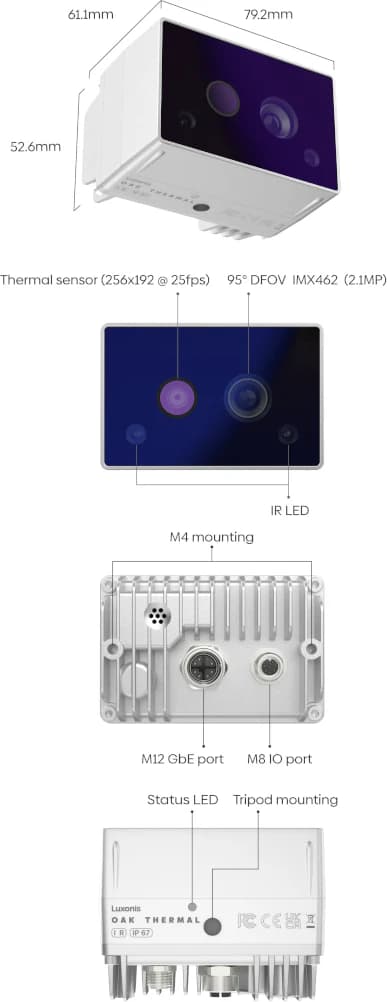

  • Dimension: 80x52x46mm
  • Weight: 297g (with enclosure)
